Flow meter and manometer (water and liquids)



AGIoT-2040 is an energy  autonomous integrated system for monitoring the flow of water/fluid pipelines, as well as their pressure to detect leaks. It consists of a data logging unit (node), a flowmeter, a manometer and a photovoltaic panel.

The node comes with 2G/4G/GPRS/EDGE/NB-IoT connectivity via a built-in SIM card (which is provided with free of charge lifetime internet connection), while the user can access the data of the connected sensors (flow, pressure) via the remote control and management software.

From this software (in the form of a web app or app for Android mobile phones) the user can be informed on the latest measurements, historical data, control the system remotely, export data, set alerts and create automations.

The system can be installed practically anywhere due to its small size, solar panel power supply and waterproof construction (IP67), while no specialized knowledge is required for its installation, as it has been designed with a plug-and-play architecture. In addition, it is possible to remotely restart the system or mobile network if an error is encountered.

The system is manufactured by AGENSO and comes with a two (2) year warranty.

Technical Specifications

  • Small size
  • IP67 protection
  • Connection to 2G/4G/GPRS/EDGE/NB-IoT mobile networks with free lifetime data with the integrated SIM card
  • Plug & play
  • Energy autonomous
  • GPS for position tracing
  • Anti-theft system (tracking and remote disabling)
  • Integrated rechargeable battery
  • Charging capability with power bank
  • Remote control and management of systems
  • Responsive design able to operate in any device
  • Mobile app for devices with Android OS
  • Measurements export in various data types (.csv, .xls, .png, .jpg) for further editing
  • Historical data for the last three years
  • Interconnection and interoperability with third-party systems or platforms via an API based on OpenAPI specification
  • Implementation of MQTT protocol for machine-to-machine communications
  • Creation of automation rules
  • Creation of specialized notifications
  • User management with different access rights

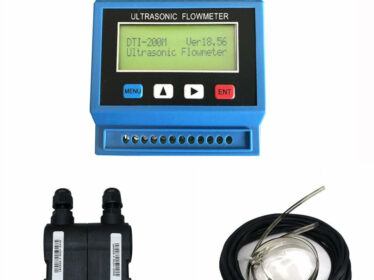

  • Measurements accuracy: over ±1%
  • Linearity: over ±0.5%
  • Supported piper sizes: DN15 mm to DN6000 mm
  • Supported temperatures for liquids: -30˚C – 90˚C
  • Communication interface: RS-485

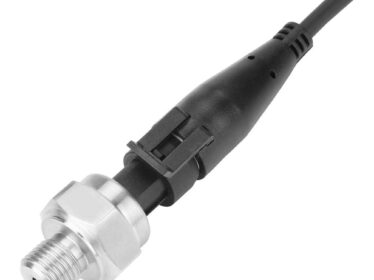

  • Measurement range: 0 – 1.6 Mpa
  • Measurement accuracy: 0.5% from 0˚C – 55˚C
  • IP68 protection
  • Operating temperature: -20˚C – 85˚C
  • Response time: <2 ms

Applications / Installation examples

  • Drillings
  • Fields
  • Green areas
  • Houses
  • Industries / SMEs
  • Municipalities
  • Water management organizations
  • Water resources

Photo Gallery
