Air quality meter

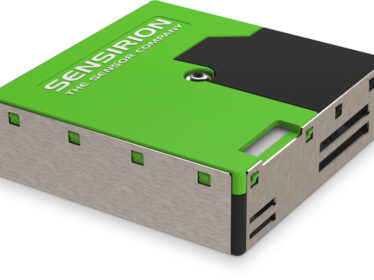

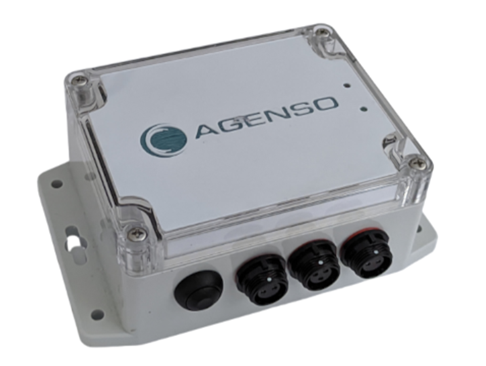

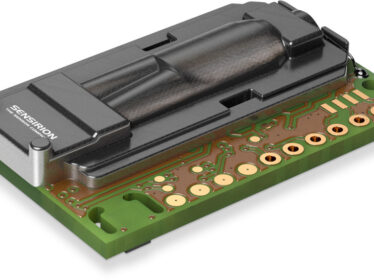

AGIoT-0535 is an energy autonomous integrated system for measuring air quality by recording indicators such as CO₂ and suspended particles. It consists of a data logging unit (node), a CO₂ measuring sensor, a suspended particle measuring sensor (PM1.0, PM2.5, PM4 and PM10), a thermometer, an air hygrometer and a photovoltaic panel.

The node comes with 2G/4G/GPRS/EDGE/NB-IoT connectivity via a built-in SIM card (which is provided with free of charge lifetime internet connection), while the user can access the data of the connected sensors (CO₂, Particulate Matter, temperature, humidity) via the remote control and management software.

From this software (in the form of a web app or app for Android mobile phones) the user can be informed on the latest measurements, historical data, weather forecast, control the system remotely, export data, set alerts and create automations.

The system can be installed practically anywhere due to its small size, solar panel power supply and waterproof construction (IP67), while no specialized knowledge is required for its installation, as it has been designed with a plug-and-play architecture. In addition, it is possible to remotely restart the system or mobile network if an error is encountered

The system is manufactured by AGENSO and comes with a two (2) year warranty.

Technical Specifications

  • Small size
  • IP67 protection
  • Connection to 2G/4G/GPRS/EDGE/NB-IoT mobile networks with free lifetime data with the integrated SIM card
  • Plug & play
  • Energy autonomous
  • GPS for position tracing
  • Anti-theft system (tracking and remote disabling)
  • Integrated rechargeable battery
  • Charging capability with power bank
  • Remote control and management of systems
  • Responsive design able to operate in any device
  • Mobile app for devices with Android OS
  • Measurements export in various data types (.csv, .xls, .png, .jpg) for further editing
  • Historical data for the last three years
  • Interconnection and interoperability with third-party systems or platforms via an API based on OpenAPI specification
  • Implementation of MQTT protocol for machine-to-machine communications
  • Creation of automation rules
  • Creation of specialized notifications
  • User management with different access rights
  • Supported measurements: particle size range (ΡΜ1.0, ΡΜ2.5, ΡΜ4 and ΡΜ10), air temperature, air humidity, carbon dioxide (CO₂)
  • Mass concentration range: 0 – 1000 μg/m³
  • Operating temperature range: -40˚C – +70˚C
  • Operating relative humidity range: 0% – 100%
  • Measurement range (CO₂): 400 – 5000 ppm
  • Automatic calibration
  • mCERTS certification for PM2.5 particles
  • Automatic cleaning once per week

Applications / Installation examples

  • Buildings
  • Fields
  • Individuals
  • Industries / SMEs
  • Municipalities / regions
  • Research
  • Woodlands (environmental conditions, forest protection with immediate detection of a fire source)
