Remote control of electrovalve with soil moisture sensor

Model

AGIoT-1560

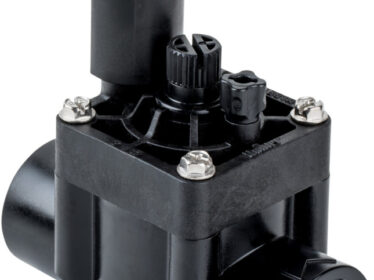

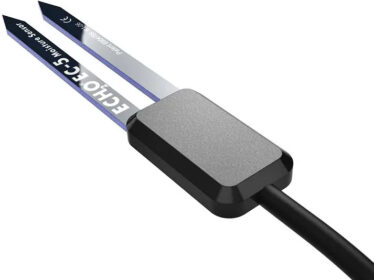

AGIoT-1560 is an energy autonomous integrated system for the complete automation of irrigation. It consists of a data logging unit (node), an electrovalve, a soil moisture meter and a photovoltaic panel.

The node comes with 2G/4G/GPRS/EDGE/NB-IoT connectivity via a built-in SIM card (which is provided with free of charge lifetime internet connection), while the user can access the soil moisture sensor data via the remote control and management software.

From this software (in the form of a web app or app for Android mobile phones) the user can be informed on the latest measurements, historical data, weather forecast, control the system remotely, export data, set alerts and create automations.

The system can be installed practically anywhere due to its small size, solar panel power supply and waterproof construction (IP67), while no specialized knowledge is required for its installation, as it has been designed with a plug-and-play architecture. In addition, it is possible to remotely restart the system or mobile network if an error is encountered.

The system is manufactured by AGENSO and comes with a two (2) year warranty.

Technical Specifications

  • Small size
  • IP67 protection
  • Connection to 2G/4G/GPRS/EDGE/NB-IoT mobile networks with free lifetime data with the integrated SIM card
  • Plug & play
  • Energy autonomous
  • GPS for position tracing
  • Anti-theft system (tracking and remote disabling)
  • Integrated rechargeable battery
  • Charging capability with power bank
  • Remote control and management of systems
  • Responsive design able to operate in any device
  • Mobile app for devices with Android OS
  • Measurements export in various data types (.csv, .xls, .png, .jpg) for further editing
  • Historical data for the last three years
  • Interconnection and interoperability with third-party systems or platforms via an API based on OpenAPI specification
  • Implementation of MQTT protocol for machine-to-machine communications
  • Creation of automation rules
  • Creation of specialized notifications
  • User management with different access rights
  • Operating voltage: 9V
  • Supported diameters: 1″, 1½″, 2″, 3″ (model dependent)
  • Recommended pressure range: up to 10-15 bar (model dependent)
  • Maximum flow:
    up to 9m³/hr. (1″)
    up to 34m³/hr. (1½″)
    up to 45m³/hr. (2″)
    up to 68m³/hr. (3″)
  • Volumetric water content (VWC)
  • Great accuracy: (±0.03 m³/m³)
  • Cable length 5m
  • Compliance to standards: EM ISO/IEC 17050:2010, 2014/30/EU, 2011/65/EU, EN61326-1:2013, EN50581:2012

Applications / Installation examples

  • Fields (irrigation)
  • Fire protection (indoor/outdoor firefighting)
  • Flower beds (irrigation)
  • Gardens (irrigation)
  • Green spaces (irrigation)
  • Greenhouses (irrigation)
  • Industries / SMEs (water management)
  • Municipalities (irrigation, firefighting)
  • Stadiums (irrigation)
  • Vacation houses (irrigation, firefighting)
  • Water resources (water management)
  • Woodlands (firefighting)

Photo Gallery
